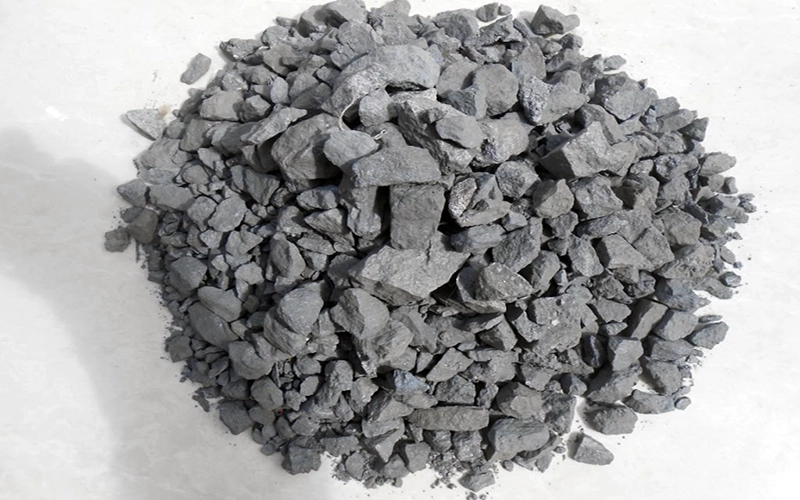

Ferro Silicon Magnesium (FeSiMg)

Ferro Silicon Magnesium (FeSiMg) is a crucial alloy used primarily in the production of ductile (nodular) cast iron. It is a ferroalloy composed mainly of iron (Fe), silicon (Si), and magnesium (Mg), with trace amounts of calcium, rare earth metals, and other elements. Its primary function is to introduce magnesium into molten iron, which changes the graphite structure during solidification, resulting in improved mechanical properties in the final casting.

Ductile iron, also known as nodular or spheroidal graphite iron, differs from traditional grey cast iron due to the shape of the graphite within its microstructure. While grey iron contains graphite in flake form—which weakens the material and makes it brittle—ductile iron contains graphite in a spherical (nodular) form, which enhances strength, ductility, and impact resistance. Ferro Silicon Magnesium plays a vital role in this transformation by acting as a nodulizing agent.

The typical composition of Ferro Silicon Magnesium varies slightly depending on its application, but generally, it contains 3% to 10% magnesium, 40% to 50% silicon, and the remainder iron, with trace additions of rare earth elements such as cerium and lanthanum to further stabilize the graphite nodules. The inclusion of rare earths improves the performance of the magnesium in the molten iron, especially in high-sulfur environments where magnesium tends to be less effective.

In foundries, FeSiMg is usually added to the molten iron just before pouring into molds. Because magnesium is highly reactive, especially at high temperatures, it must be added carefully to ensure it dissolves properly and creates the desired effect. The process is known as “inoculation,” and timing, temperature, and composition control are critical to success.
